About The Cart

Why Choose This Fire Cart

• Designed to push water long distances or to great heights
• Strong 26-ft. max. suction lift
• Engine has an adjustable throttle to control pressure
• Silicon carbide seals are 2 times harder, 15% tougher, and 50% stronger than common aluminum oxide seals.
• Fully welded industrial steel roll cage holds up to jobsite abuse.
• All sheet metal parts are cut using a state of the art CO2 laser
• Uses standard NPT threads for attachment flexibility

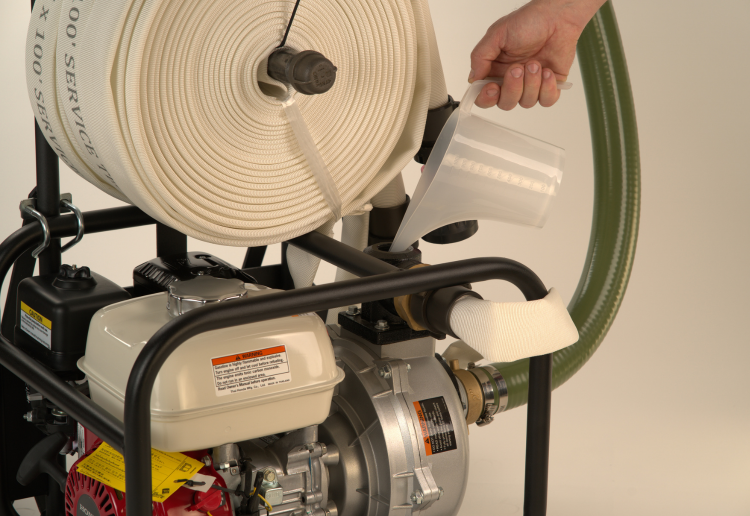

• Utilizes a check valve to hold a prime while the pump is not running

Using a dependable Honda GX160 engine and a NorthStar high-pressure water pump, this cart is ideal for sprinkler systems, remote area firefighting, and washing down equipment. Uses standard NPT threads for attachment flexibility.  Fully welded frame with durable black wrinkle powder-coat finish holds up to abuse and protects engine and pump.

High Performance, Long Lasting Pump

When you need extra pressure to push water far and high, the NorthStar high-pressure pump uses long-lasting, high-end silicon carbide seals, an aluminum impeller, and a cast iron volute, to ensure the best performance, longer life and smoother operations specially suited for heavy-duty applications. NorthStar high-pressure pump delivers.

The high-end silicone carbide mechanical seals in this NorthStar high-pressure water pump are harder, tougher and stronger than common aluminum oxide seals and have superior resistance to corrosion, wear and heat so you can use it in all kinds of situations. It also has cutting-edge check valves that hold a prime when the pump is not running to quickly get you back up and pumping.

It's built tough. Because jobsites can be dangerous and accidents happen, you'll want to protect your pump. This is why it is has a fully welded rugged steel roll cage, complete with DuPont® Black Wrinkle TGIC Polyester electrostatic finish for extra durability. It gives the pump maximum protection at the jobsite and while transporting. The wide base gives rock-solid stability.

Proven and Reliable Power

Industry Leading Engineering. Because you need a pump that you can rely on, turning to the world's largest manufacturer of engines to power the NorthStar high-pressure water pump was an obvious choice. The Honda GX160 engine gives you the industry-leading fuel efficiency, quiet operation and most importantly, power that you need to get the job done.

Easy to Work With. The precision-engineered components that come together to form this NorthStar pump and Honda engine, let it run with less vibration and less noise, so they're a lot better to be around than some other engines. They're also built to last with minimal maintenance, so you'll stay on the job with less trouble.

Setting the Standard for Quality, Performance and Value

Over 1000 Hours of Testing. No one builds water pumps better. And no one tests them more. Each NorthStar water pump component went through a series of extensive, real-world procedures in the Faribault, MN testing facility and in the field. Each pump design is endurance-tested nonstop for over 1000 hours. Before you put your pump to the test for the first time, it already has been.

Dependable Warranty. All NorthStar water pumps come with a 2-year limited warranty to give you extra peace of mind. Honda Engine Warranty – 3 year limited warranty

$1950 selling price. Lower quality carts are $4500 to $6k

Key Features Of This Fire Cart:

• Flow (GPH) – 8,120
• Engine Displacement - 163 cc
• NorthStar Manufacturer’s Warranty - 24 months parts / 24 months labor
• Honda Engine Warranty - 3 years from date of purchase by user
• Fits Hose Dia. (in.) – 2
• Discharge Port (in.) – 2
• Suction Port Size –  2
• Max. PSI – 94
• Fuel Capacity (gal.) – 0.95
• Max. Suction Lift (ft.) – 26
• Max. Total Head (ft.) – 214
• Pump Housing Material – Steel

2 inch x 20 feet, PVC non-collapsible Suction/Intake Hose, is internally wire-reinforced to prevent collapse. Smooth inside walls deliver maximum flow with reduced turbulence. The suction hose maintains high flexibility even in extreme temperatures. Corrosion-resistant brass swivel nut. Rugged die cast aluminum threaded connector. Heavy duty stainless steel hose clamps.

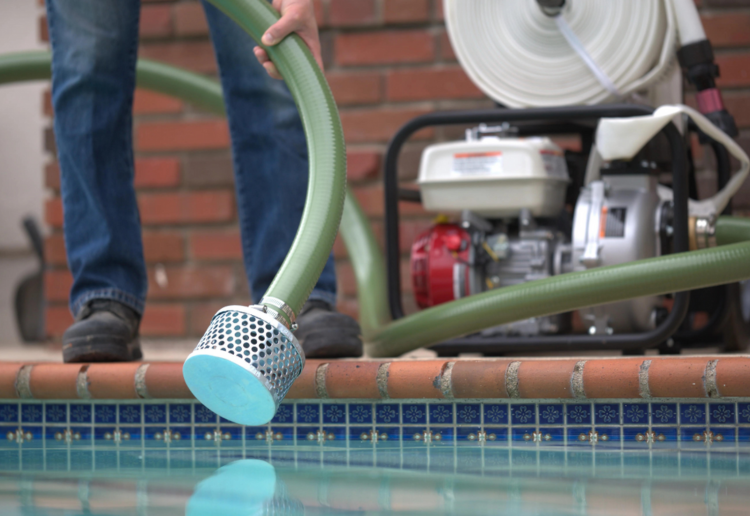

Suction strainer is zinc plated steel for corrosion and rust resistance. To protect the suction pump from debris during operation to help prevent your suction pump from being damaged or clogged.

800 lb. Capacity Cart. This extra-rugged Cart features an 800 lb. load capacity to handle the toughest jobs. It features an ultra-durable, rust-resistant powder coated finish while its oversized, flat-free tires require zero maintenance. Safety handle for easy one-handed operation.

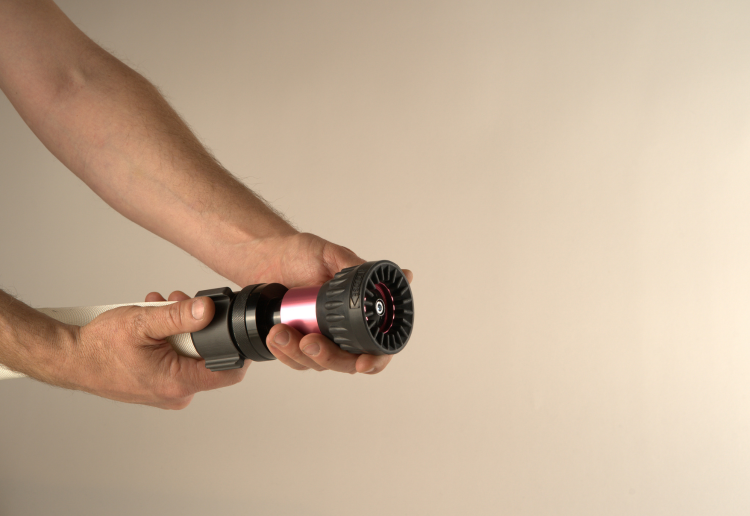

Aluminum 1-1/2" Fire Nozzle (NH). Combination nozzle has the option of a straight stream or fog pattern. Maximum Pressure - 175 psi.

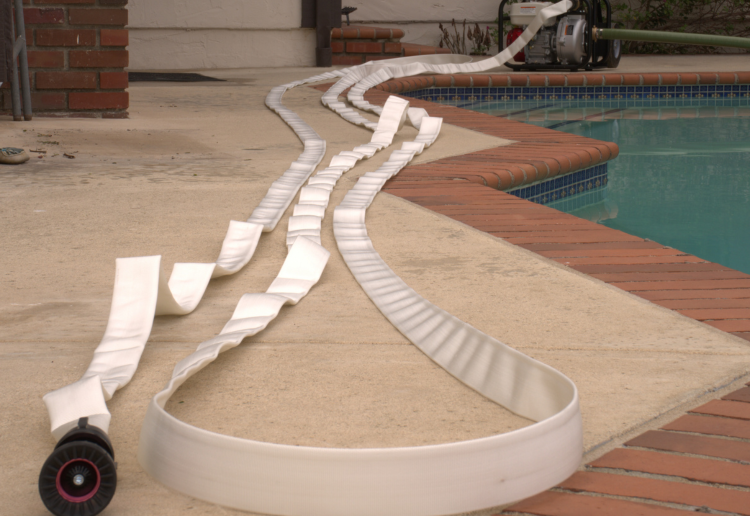

White 1-1/2" x 100' Hose with aluminum NH couplings. Mildew Resistant Polyester Single Jacket, lay-flat hose. This hose is constructed of an SBR synthetic rubber liner and a single layer of 100% polyester woven jackets. Service Pressure: 125 PSI. Proof Test Pressure: 250 PSI. Male Coupling: Aluminum 1 1/2 inch NH / NST. Swivel Female Coupling: Aluminum 1 1/2 inch NH / NST.
